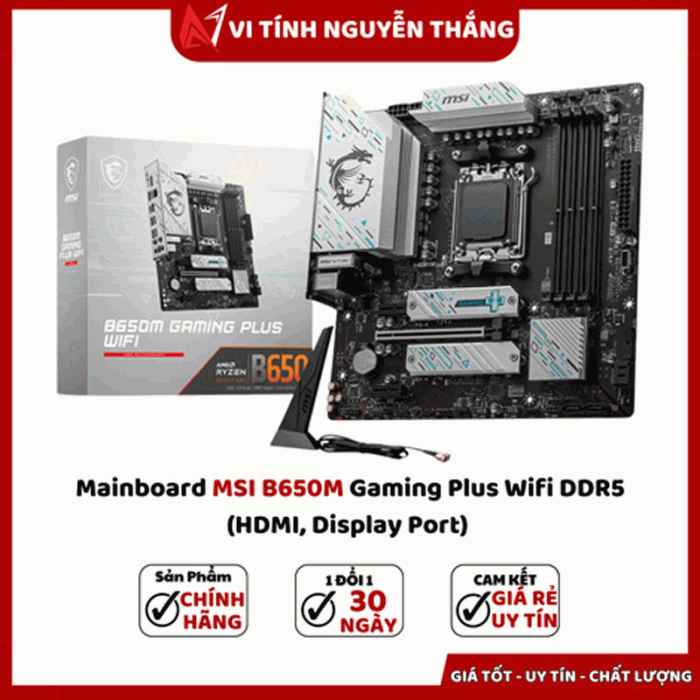

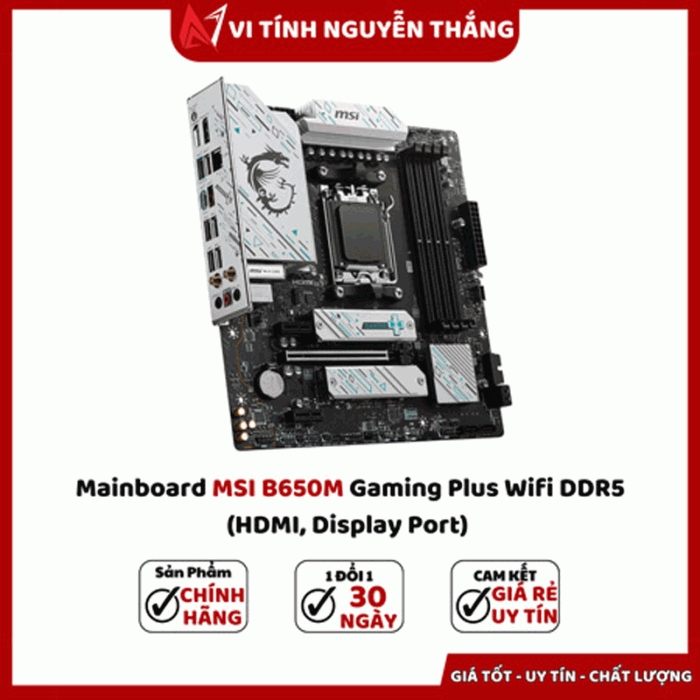

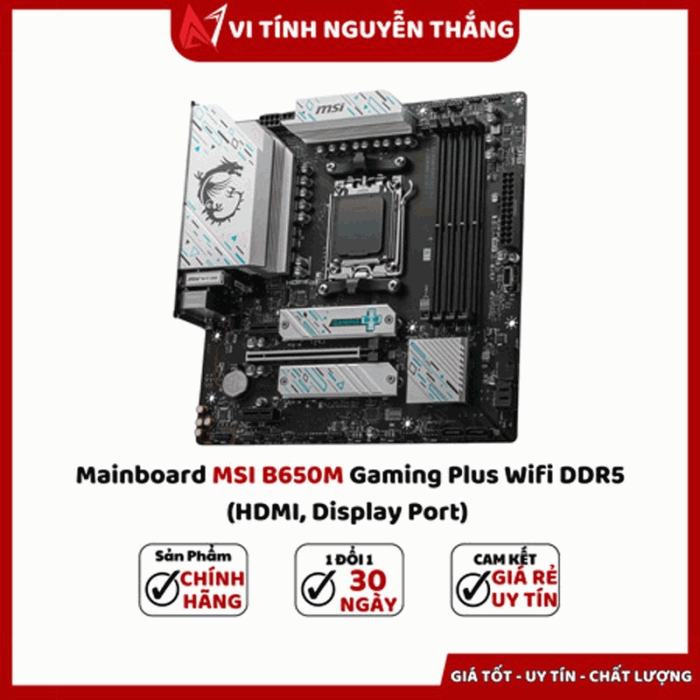

Mainboard MSI B650M Gaming Plus Wifi DDR5 (Hdmi, Display Port)

Sản phẩm

Bo mạch chủ

Tên Hãng

MSI

CPU hỗ trợ

AMD

Chipset

B650

RAM hỗ trợ

4x DDR5 UDIMM, Maximum Memory Capacity 256GB

Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz

Supports Dual-Channel mode

Supports non-ECC, un-buffered memory

Supports AMD EXPO™

Max. overclocking frequency:

• 1DPC 1R Max speed up to 7200+ MHz

• 1DPC 2R Max speed up to 6000+ MHz

• 2DPC 1R Max speed up to 6000+ MHz

• 2DPC 2R Max speed up to 5400+ MHz

Khe cắm mở rộng

1x PCI-E x16 slot

• Supports x16 (For Ryzen™ 7000 Series processors)

• Supports x8 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors)

• Supports x4 (For Ryzen™ 5 8500G processor)

2x PCI-E x1 slot

PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU)

PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)

Ổ cứng hỗ trợ

2x M.2

M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

4x SATA 6G

Cổng kết nối (Internal)

1x Power Connector(ATX_PWR)

2x Power Connector(CPU_PWR)

1x CPU Fan

1x Pump Fan

3x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x Tuning Controller connector(JDASH)

2x Addressable V2 RGB LED connector (JARGB_V2)

2x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0 ports

2x USB 3.2 Gen1 Type A ports

1x USB 3.2 Gen2 Type C ports

Cổng kết nối (Back Panel)

DisplayPort

2.5G LAN

USB 3.2 Gen 2 10Gbps (Type-A)

USB 3.2 Gen 1 5Gbps (Type-A)

Wi-Fi / Bluetooth

Flash BIOS Button

HDMI™

USB 3.2 Gen 2 10Gbps (Type-A)

USB 3.2 Gen 2 10Gbps (Type-C)

Audio connectors

LAN / Wireless

Realtek® RTL8125BG 2.5Gbps LAN

AMD Wi-Fi 6E

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX

Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands

Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3

Kích cỡ

mATX

243.84mmx243.84mm
