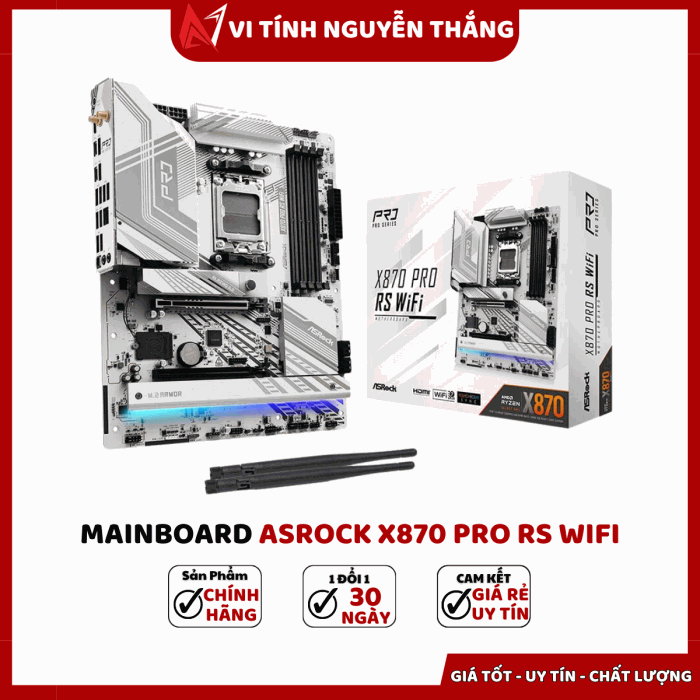

MAINBOARD ASROCK X870 PRO RS WIFI

Memory

Dual Channel DDR5 Memory Technology

4 x DDR5 DIMM Slots

Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)

Max. capacity of system memory: 256GB

Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO)

Expansion Slots

1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*

1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode*

1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

PCIE1 configurations vary based on CPU generation.

If M2_2 is occupied, PCIE2 will be disabled.

Supports NVMe SSD as boot disks

Supports AMD CrossFire™

15μ Gold Contact in VGA PCIe Slot (PCIE1)

Graphics

Integrated AMD RDNA™ graphics (support may vary by CPU)

1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3, up to 4K 120Hz

2 x USB4, supports HDCP 2.3, up to 8K 30Hz*

Only CPU’s embedded graphics can be displayed through USB4 ports.

Audio

7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)

Impedance Sensing on Rear Out port

Individual PCB Layers for R/L Audio Channel

Nahimic Audio

LAN

2.5 Gigabit LAN 10/100/1000/2500 Mb/s

Dragon RTL8125BG

Supports Dragon 2.5G LAN Software

Wireless LAN

802.11be 2×2 Wi-Fi 7 Module

Supports IEEE 802.11a/b/g/n/ac/ax/axe/be

Supports 2.4GHz/5GHz/6GHz frequency bands

Supports 160MHz channel bandwidth with 6GHz frequency band*

Supports Bluetooth 5.4

Supports MU-MIMO

USB

2 x USB4 Type-C (Rear)

2 x USB 3.2 Gen1 Type-A (Rear)

1 x USB 3.2 Gen2x2 Type-C (Front)

4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front)

9 x USB 2.0 (6 Rear, 3 Front)

All USB ports support ESD Protection

Rear Panel I/O

2 x Antenna Ports

1 x HDMI Port

1 x Optical SPDIF Out Port

2 x USB4 Type-C Ports (40 Gb/s)*

4 x USB 3.2 Gen1 Type-A Ports

6 x USB 2.0 Ports

1 x RJ-45 LAN Port

1 x BIOS Flashback Button

1 x Line Out Jack (Gold Audio Jack)

1 x Microphone Input Jack (Gold Audio Jack)

Storage

1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4

1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4

1 x Ultra M.2 Socket (M2_3, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x4

2 x SATA3 6.0 Gb/s Connectors

Supports NVMe SSD as boot disks

If M2_2 is occupied, PCIE2 will be disabled.

If SATA3_1 or SATA3_2 is occupied, M2_3 will downgrade to Gen3x2 mode.

RAID

Supports RAID 0 and RAID 1 for SATA storage devices

Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices*

Connector

1 x Thermistor Cable Header

1 x Power LED and Speaker Header

1 x RGB LED Header*

3 x Addressable LED Headers**

2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)***

4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***

1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***

1 x Power LED and Speaker Header

1 x RGB LED Header*

3 x Addressable LED Headers**

2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)***

4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***

1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***

1 x 24 pin ATX Power Connector

2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)

1 x Front Panel Audio Connector

2 x USB 2.0 Headers (Support 3 USB 2.0 ports)

1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)

BIOS Feature

256Mb AMI UEFI Legal BIOS with GUI support

Software and UEFI

ASRock Motherboard Utility (A-Tuning)

ASRock Dragon 2.5G LAN Software

ASRock Polychrome SYNC

These utilities can be downloaded from ASRock Live Update & APP Shop.

ASRock EZ Mode

ASRock Full HD UEFI

ASRock Auto Driver Installer

ASRock Instant Flash

Certifications

Microsoft® Windows® OS 10 64-bit / 11 64-bit

FCC, CE

ErP/EuP ready (ErP/EuP ready power supply is required)

Accessories

2 x SATA Data Cables

2 x ASRock WiFi 2.4/5/6 GHz Antennas

Platform

ATX Form Factor: 12.0-in x 9.6-in (30.5 cm x 24.4 cm)

8 Layer PCB

Supports AMD Socket AM5 Ryzen™ 9000, 8000, and 7000 Series Processors*

Unique Features

Superb Productivity: PCIe Gen5 (Graphics, M.2), Dual Channel DDR5, USB4 Type-C Ports (40 Gb/s)

Rock-Solid Durability: 14+2+1 Power Phase, 80A Dr.MOS, Enlarged Heatsink Armor

Ultrafast Connectivity: 2.5G LAN, 802.11be Wi-Fi 7 Module

EZ Update: BIOS Flashback Button, ASRock Auto Driver Installer

EZ Troubleshooter: ASRock Post Status Checker

Chipset

AMD X870

Model

X870 PRO RS WiFi
