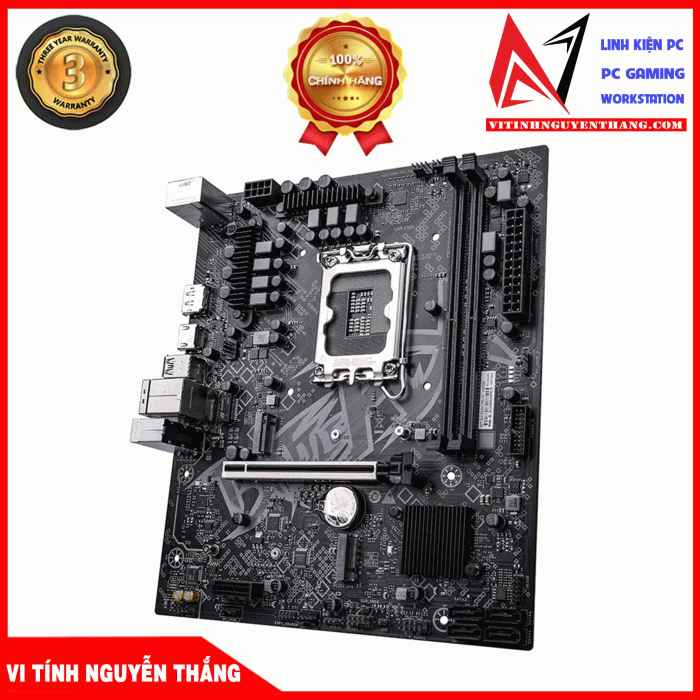

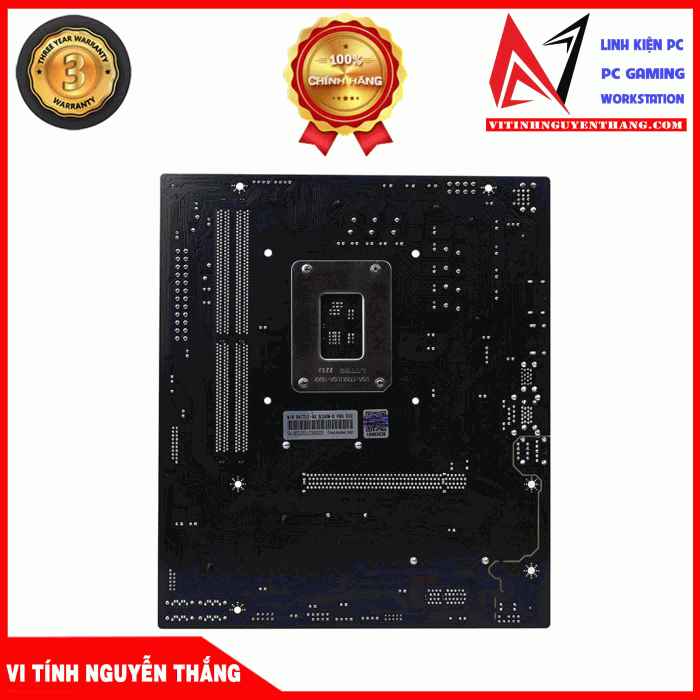

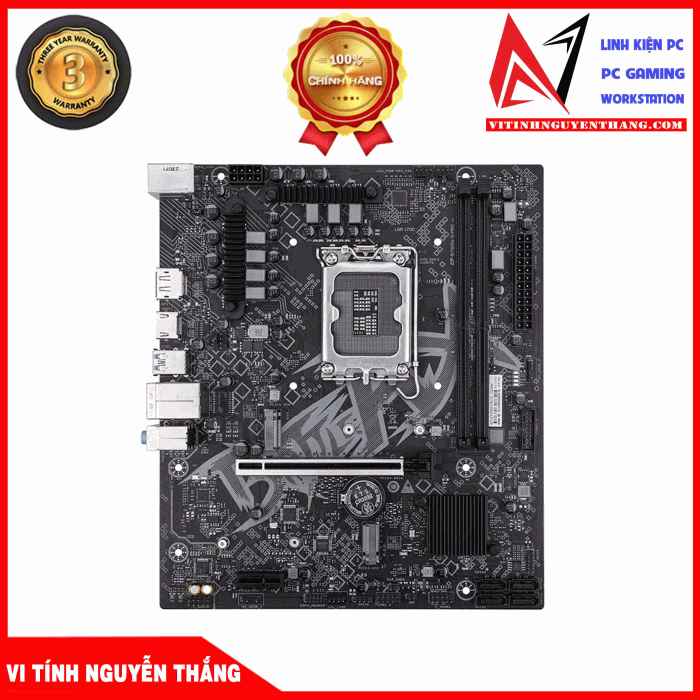

Mainboard COLORFUL Battle-AX B760M-D PRO V20 DDR4

Model

    BATTLE-AX B760M-D PRO V20

Product Series

    BATTLE-AX series

Chipset

    Intel B760

Processor

    Support the 13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard ® Core TM, Pentium ® And Cylon ® Processor

Memory

    2 DDR4 memory sockets are provided, which can support up to 64 GB of memory (a single socket can support up to 32 GB of memory)

    - support DDR4-4800 (OC)/4600 (OC)/4400 (OC)/4266 (OC)/4000 (OC)/3733 (OC)/3600 (OC)/3466 (OC)/3200/3000/2933/2800/2666/2400/2133MHz of memory

    - support Intel ® Extreme Memory Profile (XMP) memory technology

    - supports dual channel memory technology

    (* Please visit www.colorful.cn for the latest memory compatibility list)

SATA Ports

    2 M.2 slots and 4 SATA 6Gb/s hard disk interfaces, Support the creation of RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays using SATA hard disk devices

    - M2_ 1 slot: support 2242/2280 M.2 SSD (PCIe 4.0 x4, CPU channel)

    - M2_ 2 slot: support 2242/2280 M.2 SSD (PCIe 4.0 x4/Optane, PCH channel)

    (* See the official BIOS user guide of Colorful for the steps to create a RAID disk array)

Board I/O

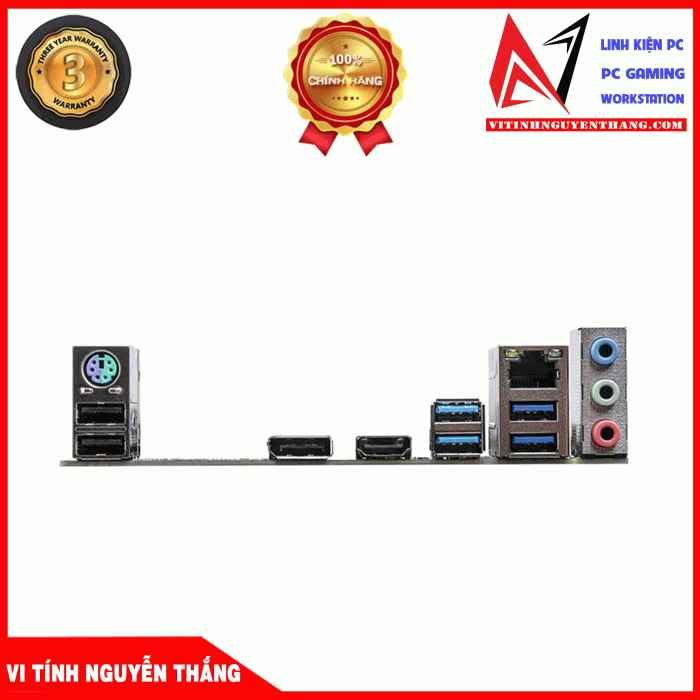

    Rear I/O interface:

    - 1×PS/2 interface

    - 2×USB 2.0 interfaces

    - 4×USB 3.2 Gen 1 Type-A interfaces

    - 1×DP 1.2 interface, supporting up to 4K 60Hz resolution

    - 1×HDMI 2.0 interface, Supports up to 4K 60Hz resolution

    - 1×2.5G network interface

    - 3×audio interfaces (audio input/audio output/microphone)

    Onboard device interface:

    - 1×CPU fan pin

    - 2×system fan pins

    - 1×water cooling pump pin

    - 1×USB 2.0 pin expandable 2 USB 2.0 Type-A interfaces

    - 1×USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 Type-A interfaces

    - 2×5V 3-pin ARGB pins
